Simplecom CHT560 USB-C SuperSpeed 6-in-1 Multiport Docking Station HDMI 2.0 0.5 kg

Simplecom CHT560 USB-C SuperSpeed 6-in-1 Multiport Docking Station HDMI 2.0

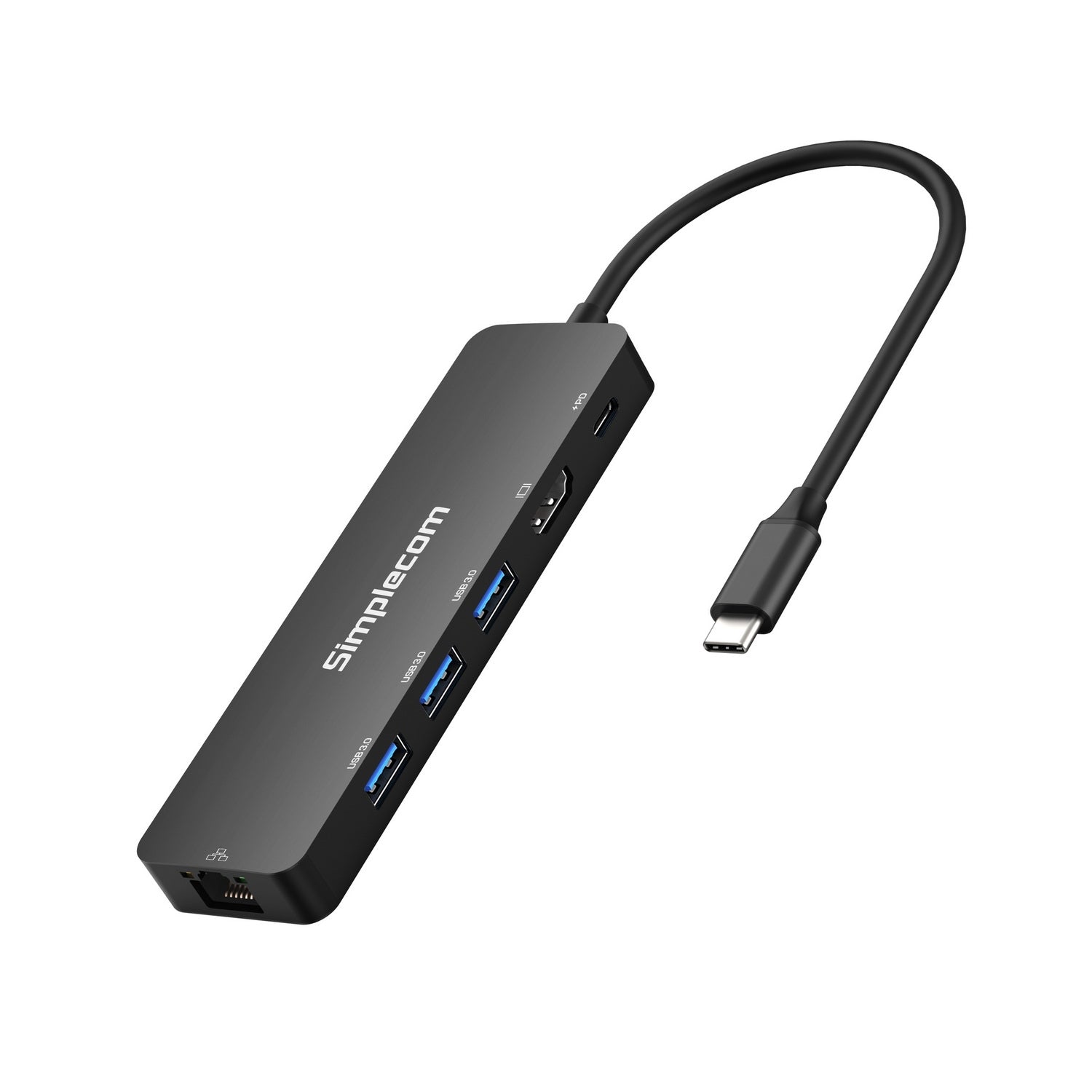

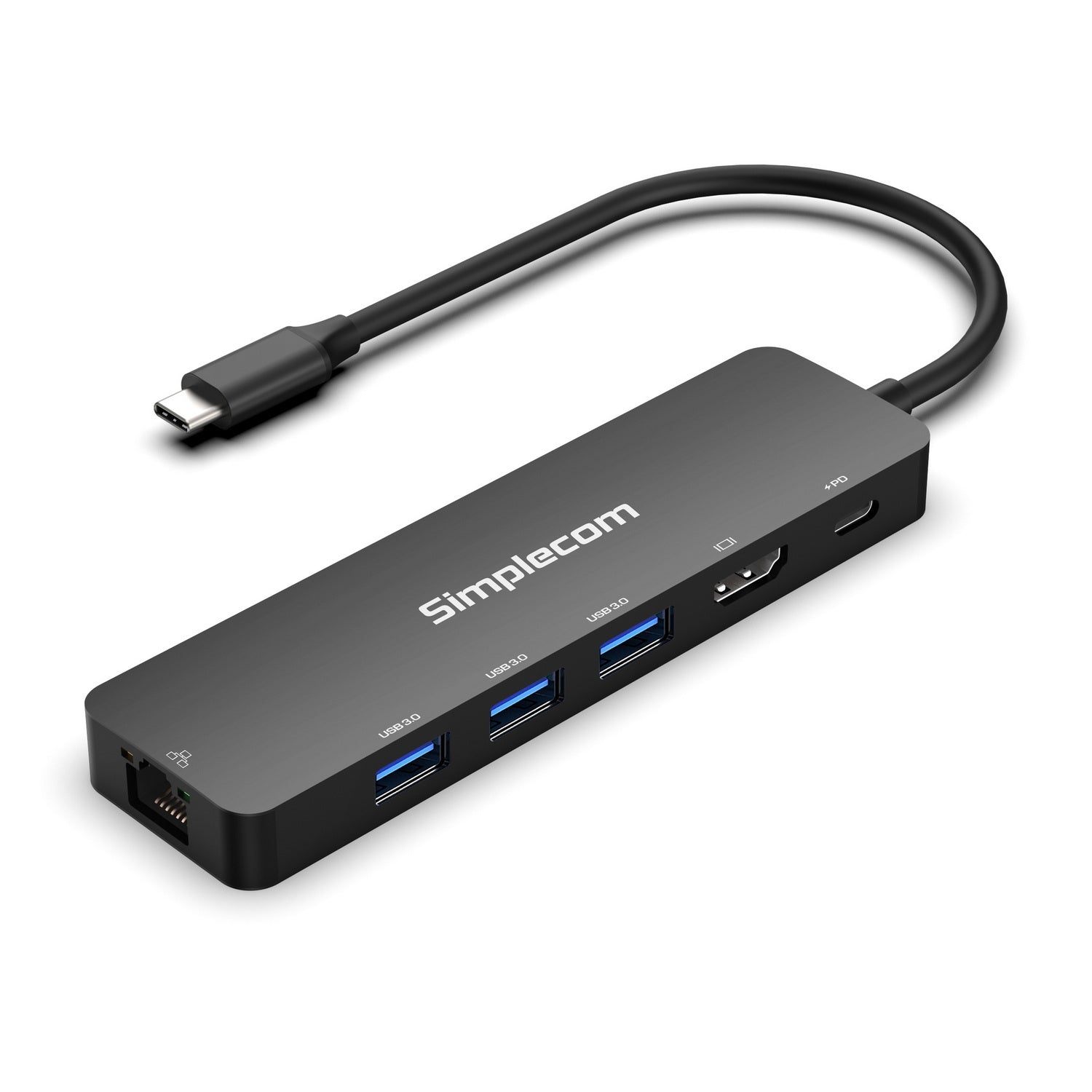

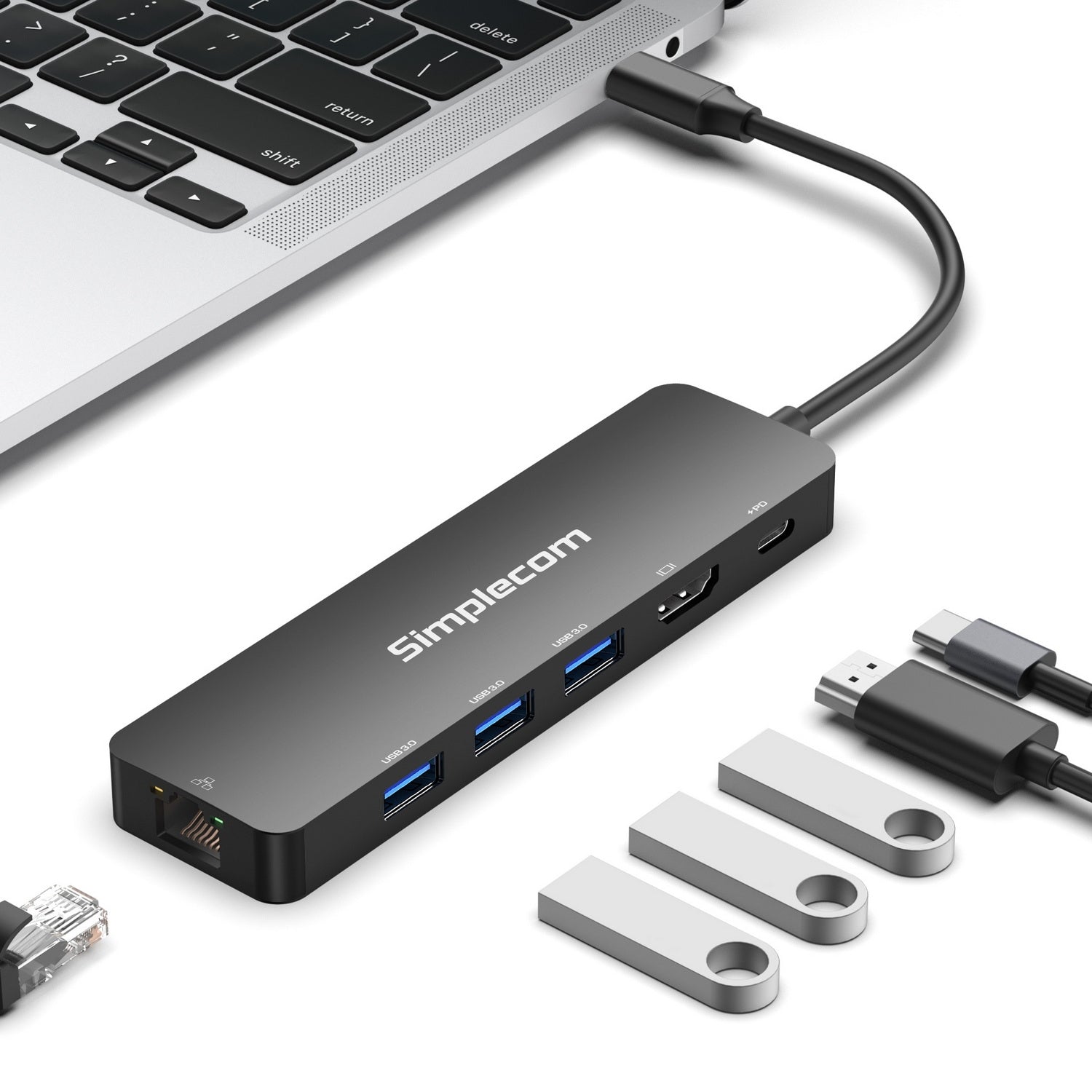

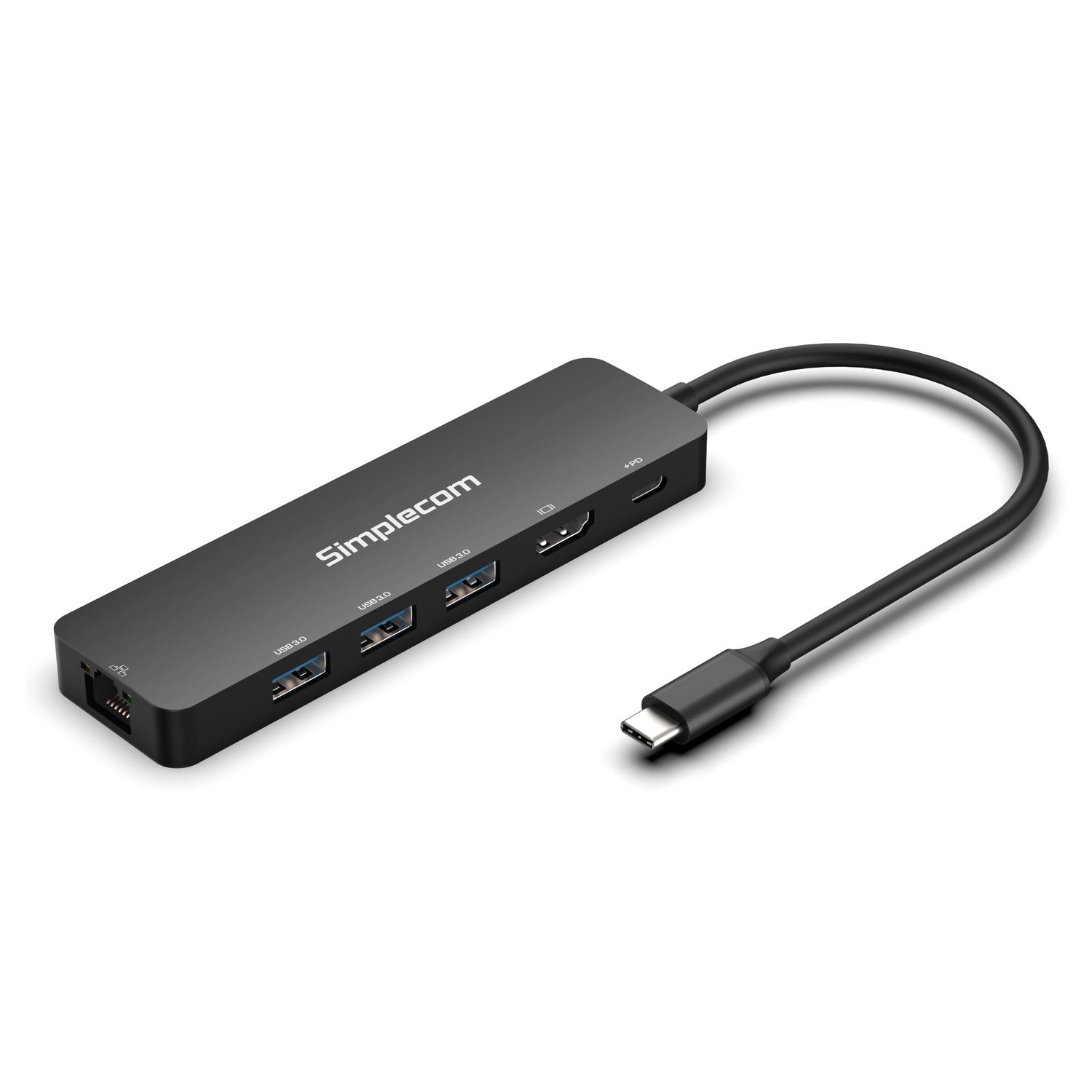

CHT560 is a 6-in-1 USB-C multiport docking station that enhances your laptop's connectivity through its USB-C port. It transforms a single USB-C port into six ports, including three SuperSpeed USB-A ports, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.

If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that boosts productivity and convenience.

6-in-1 USB-C Docking Station
A portable, all-in-one USB-C docking station featuring three SuperSpeed USB-A ports, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.

HDMI 2.0 Video Output, up to 4K@60Hz
The HDMI 2.0 port supports 4K video output at 60 frames per second. Compatible devices with DP 1.4 support can output video at up to 4K@60Hz, ensuring smooth and fluid playback, especially for fast-paced content or action movies.

SuperSpeed USB Hub
Three USB-A ports with a maximum transfer speed of up to 5Gbps. You can connect USB hard drives, keyboards, mice, flash drives, or other USB devices.

100W USB-C Power Delivery
The USB-C PD port can charge your connected laptop while the other ports are in use. It supports PD 3.0 and delivers up to 100W of Power Delivery charging.

Gigabit Ethernet
Connect to the internet instantly and enjoy stable speeds of up to 1000Mbps. This helps reduce latency and interference, ensuring a more consistent and reliable experience for streaming or downloading.

Stylish and Durable Aluminium Casing
The USB-C multiport adapter features a durable aluminium alloy housing, adding a sleek touch to your workspace. The metal shell also improves heat dissipation, ensuring stable performance.

Features

• 6-in-1 USB-C multiport docking station for easy expansion to your laptop
• Single USB-C to three USB-A ports, HDMI 2.0, Gigabit Ethernet, and PD
• SuperSpeed USB ports support data transfer rate up to 5Gbps
• HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
• Gigabit Ethernet supports connection speeds of up to 1000Mbps
• USB-C PD port for charging the laptop with up to 100W of power
• Durable and stylish aluminium alloy housing
• Lightweight and portable, easy to carry while traveling
• Built-in flexible USB-C Cable
• Plug and play, no driver software required

Specifications

• Host Interface: USB-C
• USB Hub: 3x USB-A Female (SuperSpeed 5Gbps)
• HDMI Resolutions: Supports up to 3840 x 2160p at 60Hz (4K@60Hz)
• Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• PD Input: USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 45C
• Housing Material: Aluminium
• Dimensions: 12.8 x 3.5 x 1.3cm
• Cable Length: 15cm approx.
• Weight: 60g approx.

System Requirements

• Operating system: Windows 10 or above, macOS 10.12 or above
• Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
• Laptop GPU with DP 1.4 supports up to 4K@60Hz, laptop GPU with DP 1.2 supports up to 4K@30Hz

Important Note

• Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
• 4K@60Hz is supported by laptop GPUs with DP 1.4 (e.g., Intel 11th Gen Core Mobile Processors or later).
• The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.
