    Recessed Panel

    View as

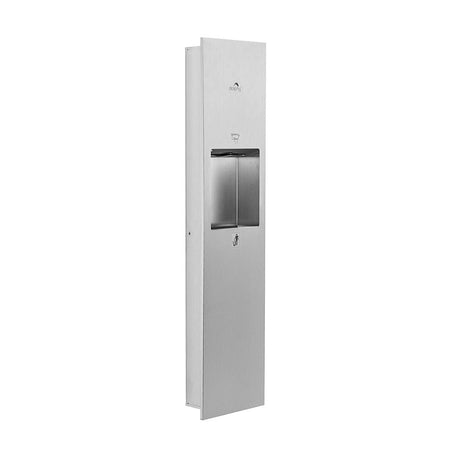

    A recessed washroom panel is a stainless steel unit set into the wall that combines a paper towel dispenser and a waste bin, and in one model a hand dryer too. This page has two Dolphy automatic recessed panels: a 2-in-1 and a 3-in-1, both in silver stainless steel.

    How to choose a recessed washroom panel

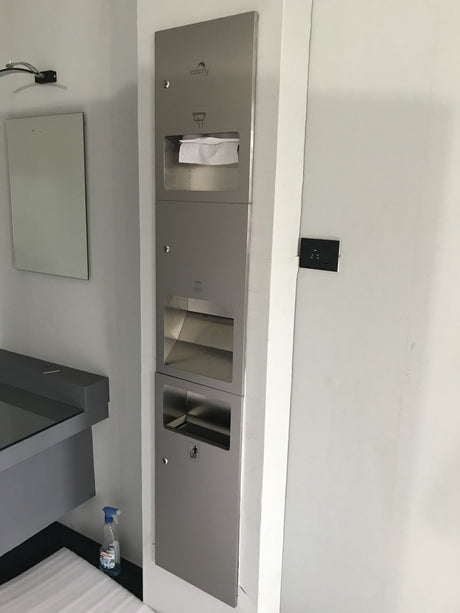

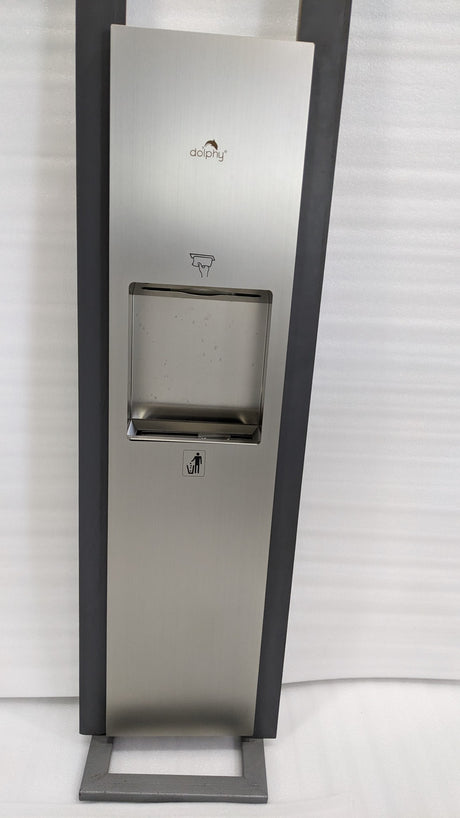

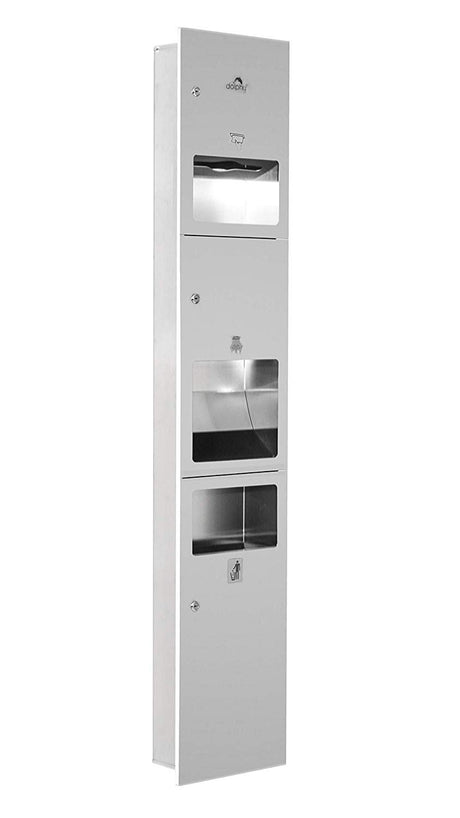

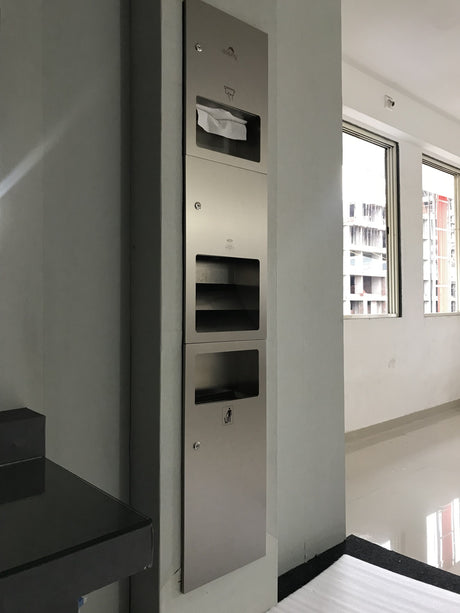

    2-in-1 or 3-in-1. The 2-in-1 panel is a paper dispenser and a waste bin. The 3-in-1 panel is a paper dispenser, a hand dryer and a waste bin, with automatic infrared sensor activation.

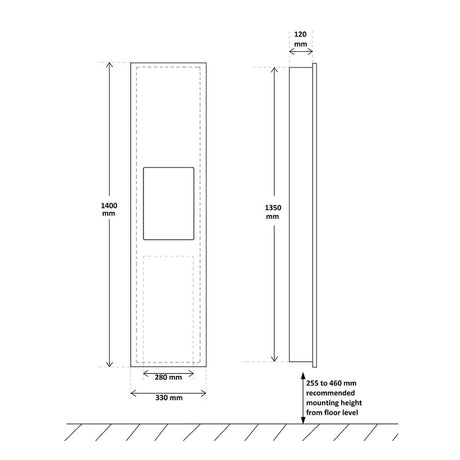

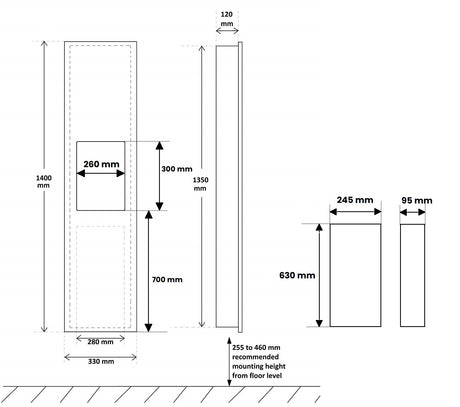

    Wall cavity. The 2-in-1 listing gives 140cm (H) x 33cm (W) x 13cm (D), and the 3-in-1 listing gives 170cm (H) x 33cm (W) x 13cm (D). Check these sizes against the wall framing before ordering, because a recessed unit has to fit the cavity.

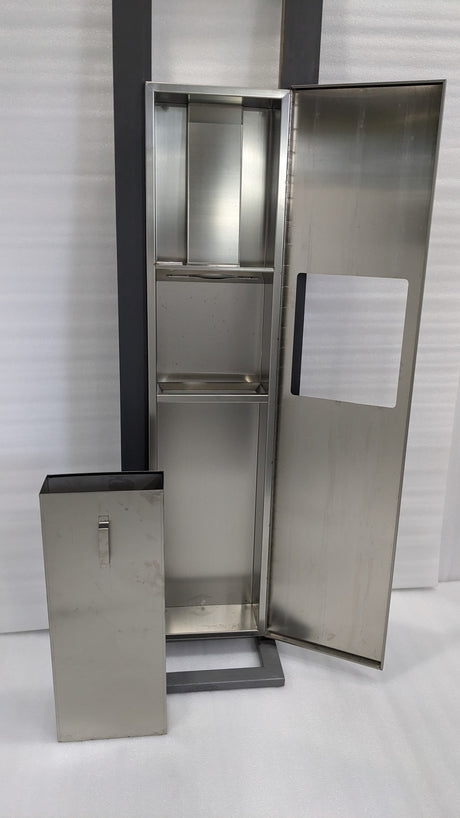

    Bin size. The 2-in-1 lists a 24L waste bin. The 3-in-1 lists a 21 litre waste bin.

    Power. The 3-in-1 hand dryer lists 1150W - 1350W at 220 - 240V, a brush motor, hot or cold airflow and an IPX1 water resistance rating. The 2-in-1 listing gives no hand dryer.

    Recessed panels compared

    Item Combines Dimensions Waste bin Hand dryer
    Dolphy Automatic 2-in-1 Washroom Recessed Panel (DWCB0003) Paper dispenser + waste bin 140cm (H) x 33cm (W) x 13cm (D) 24L No
    Dolphy Automatic 3-in-1 Washroom Recessed Panel (DWCB0002) Paper dispenser + hand dryer + waste bin 170cm (H) x 33cm (W) x 13cm (D) 21 litres 1150W - 1350W, hot or cold

    Frequently asked questions

    What is the difference between the 2-in-1 and 3-in-1 recessed panels?

    The 3-in-1 adds a hand dryer to the paper dispenser and waste bin. It is 170cm (H) against 140cm (H) for the 2-in-1, and its waste bin is 21 litres against 24L.

    How deep a wall cavity does a recessed panel need?

    Both Dolphy listings give a depth of 13cm (D) and a width of 33cm (W). Check the cavity against these sizes before ordering.

    What power does the 3-in-1 hand dryer use?

    The listing gives 1150W - 1350W at 220 - 240V, with a brush motor and hot or cold airflow.

    What are the recessed panels made from?

    Both listings give stainless steel in a silver colour.

    Can I buy a paper towel or soap dispenser on its own?

    Yes. For a separate wall-mounted unit, see paper towel dispensers or soap dispensers.

    For a hand dryer on its own, including a recessed stainless steel model, see our commercial hand dryers.
